Control Room Solutions

Video Wall

We offer Pyrotect PRIME LED Series in addition to the complete line of LED-illuminated rear projection video wall displays that delivers high reliability in mission critical operations with efficient power management techniques. This technology enhances the system performance for a longer period of time.It delivers the brightness up to 800+ nits and the illumination life up to 60,000 hours in normal operations and 80,000 hours in Eco mode with adjustable brightness. The illumination system made up of latest-generation LED architecture & intelligent automatic color and brightness adjuster ensures every display in the video wall operates at a user-defined color or brightness level which ultimately results in clear, bright, sharp and balanced images on the video wall. The Pyrotech PRIME LED Series is engineered for trouble-free operations with lower cost-of ownership.

Pyrotech Prime Series Controller

Fine Pitch LED Video wall - Datasheet

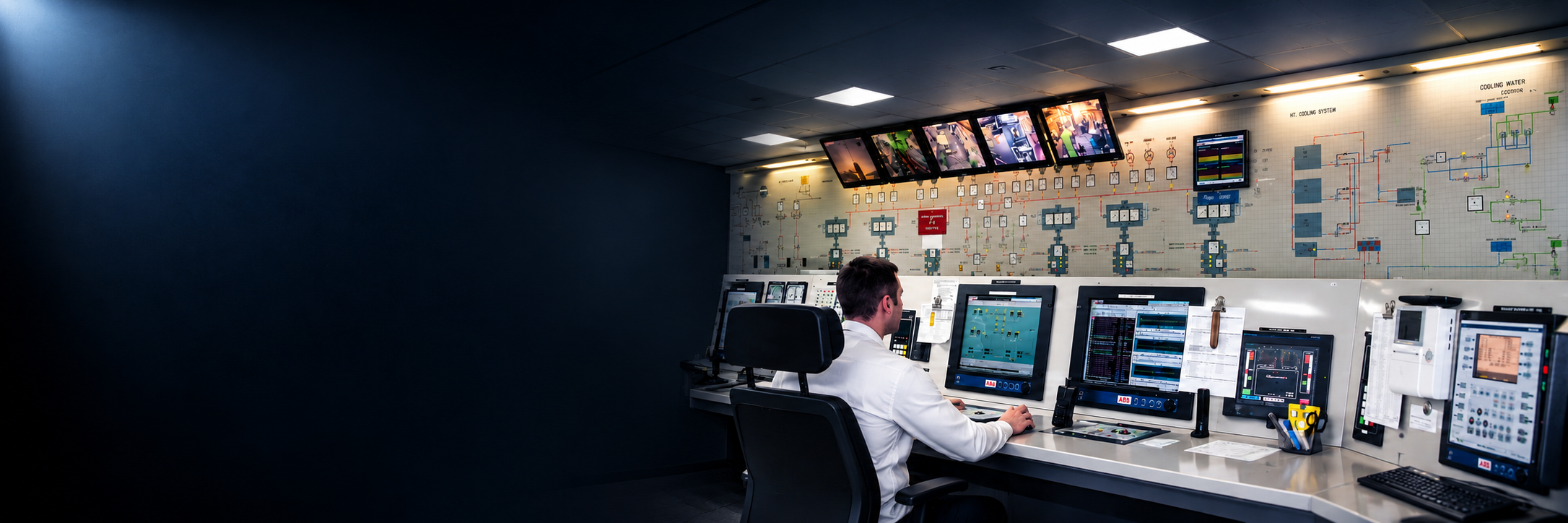

Mosaic Mimic Panels

The mosaic mimic system is a long-lasting, 100%-modular solution for many 24/7/365 process control and visualization applications.

Mosaic is well proven, providing a secure and robust engineered solution, giving total confidence to plant and control room operators.

With minimal routine maintenance required, lifetime ownership costs are kept to a minimum.

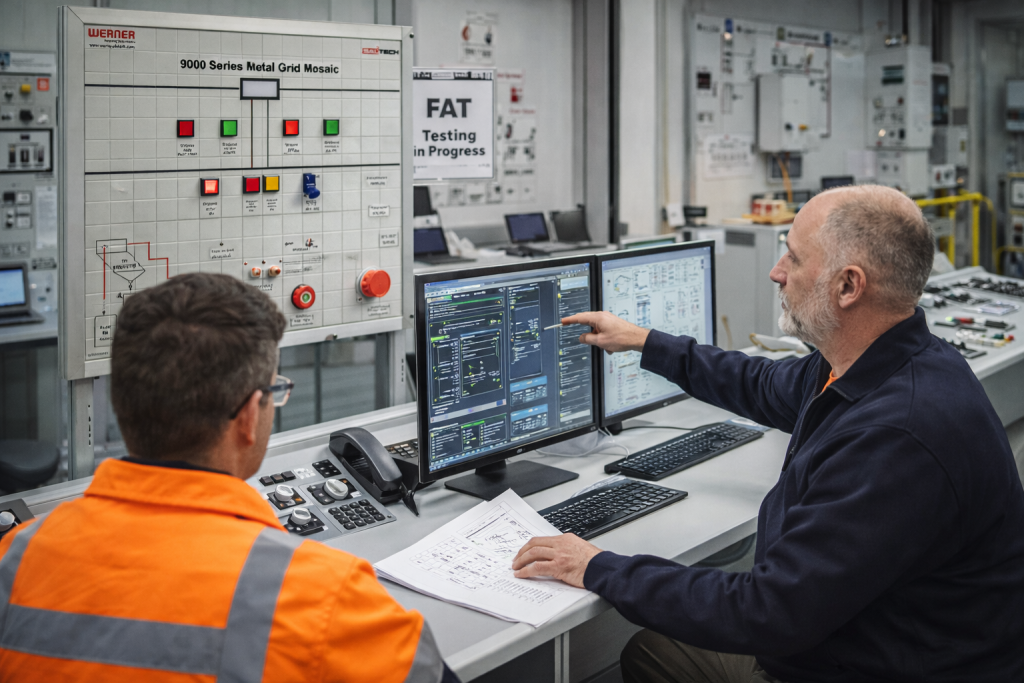

Mosaic mimic panel is made of small pre-printed attachable tiles representing phases, processes and flows of the plant. The framework of signal lights and sound helps you immediately monitor the status of the connected system, whilst switches and selectors allow you to manage the operations.

A key benefit of the system is the ease of future modification. Devices may be added or removed to the demands of the user, with the mosaic always maintaining a high-quality appearance which shows no visible history of modification.

Critical Action Panels (CAPs) are hardwired safety panels installed in oil and gas platform control rooms. They are used as a redundant backup for safe shutdown in cases where software systems could fail. High-quality switches, displays and digital measuring devices from well-known manufacturers are used to achieve SIL certification (Safety Integrity Level) if necessary. All cables are halogen-free and flame-retardant.

SALTECH is able to supply switches and indicators that can be installed into most outdated CAP and F&G panels from other manufacturers to extend their lifespan.

Nuclear power plant control rooms

We specialise in customised control rooms for nuclear power plants.

Every new nuclear power plant project must meet certain seismic criteria, which depend on the geographical location. We have a database of already manufactured control room components that can be used for seismic analysis. If sufficient data is not available, an actual seismic test will be conducted using full-size electrical panels or control panels for evaluation and verification.

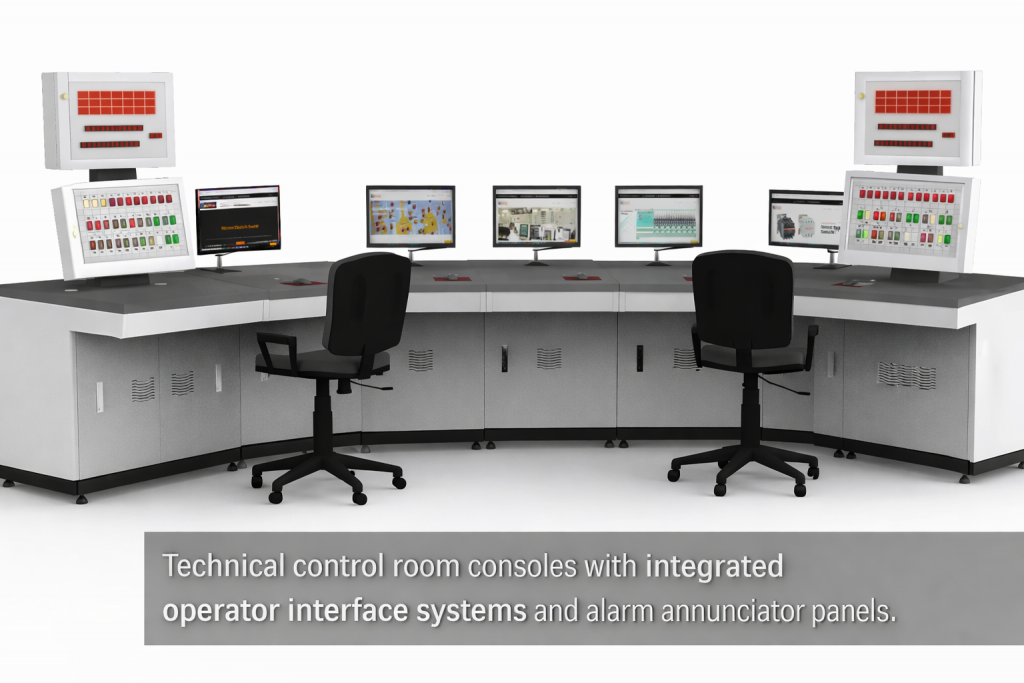

Console Panels

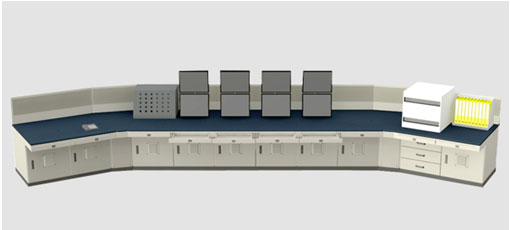

The Control rooms console of PYROTECH BRAND consists of individual modular units of Fabricated/angled section, each designed to be assembled into a complete console structure.
The Consoles are fully modular in design and construction.

Modular Design with standardised unit or dimension as for easy assembly & repair or flexible arrangement.

⮚ The console system ships in individual fully assembled units to be levelled in position & bolted together at the site.
⮚ The consoles are ergonomically designed for operator comforts & suitable for housing mounting personnel computers,21” CRT’s,19” racks mounted equipment, video monitors, distributor control systems & other items required in a control room environment.
⮚ The console system has the ability to house panel mounted components such as panel meters, push buttons, pilot lights & other components required by the system.
⮚ Console system has the option of being one or two tiers high.

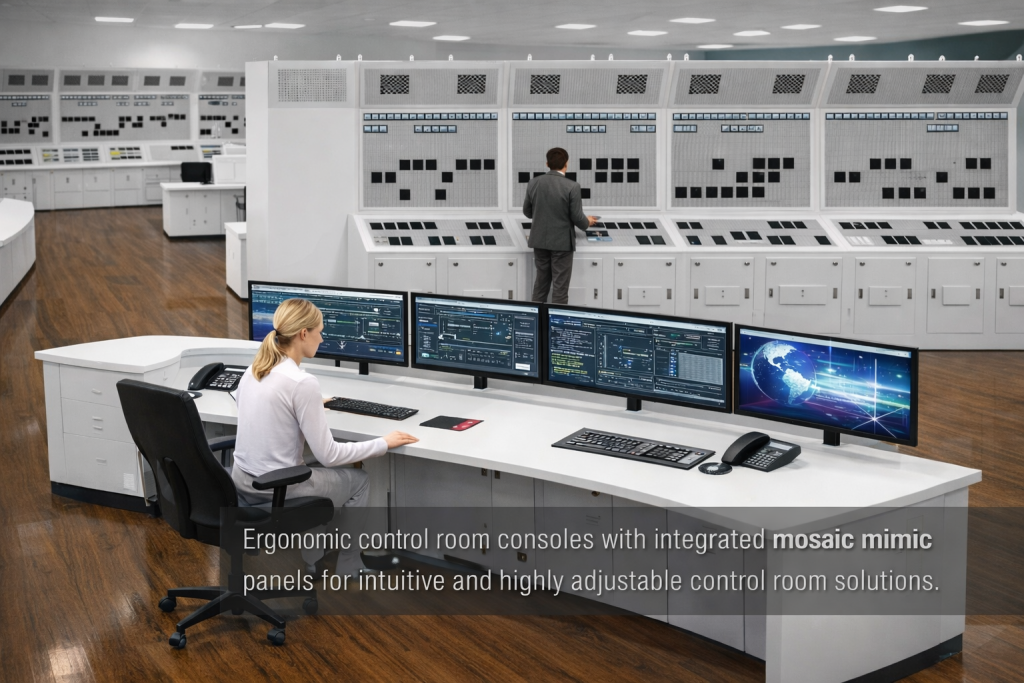

Ergonomic Consoles

Pyrotech Work Space consoles are designed to provide ergonomic comfort to users while minimising operational distractions so that they can focus on day-to-day operations. The built-in features of control desks such as motorised hight adjustment for worktops, integrated cable management, CPU enclosures and power & data outlets differentiate them from typical office furniture. These consoles are designed to empower the users letting them concentrate on their work. It improves overall comfort & health that results in enhanced productivity.
