Panels & cabinets

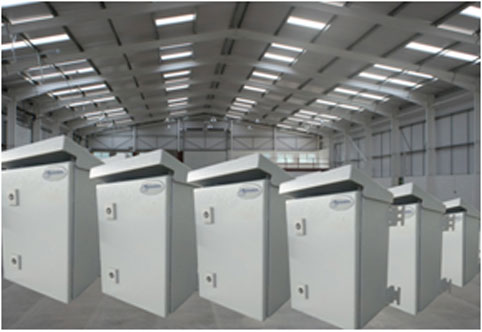

JUNCTION BOX
We offer a comprehensive range of IP55/IP65 small enclosures, ideal for indoor and outdoor applications.
Constructed with durable materials including 1.6mm CRCA MS sheet for the junction box and front door, 2.0mm GI/ALU Zinc sheet for the mounting plate, and 2.0mm CRCA MS sheet for the bottom cable gland plate. Our enclosures undergo a chemical treatment using NANO Technology from Henkel (Germany), followed by Hybrid Epoxy Polyester powder coating for maximum durability and protection. Featuring self-gripping PU foam gaskets for enhanced sealing, IP65 rating (without cutouts), and single-point cam locks for added security.

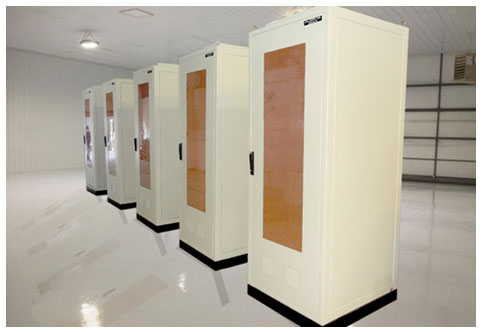

BARE PANELS
Protection:The FeCOSY panels meet the varying protection requirements up to IP 55.
Strength:The Rigid 5 Fold Sections provides a very stable framework, moreover the recessed side sheets provide extra strength to the cubicle. The folding of the sheets make the frame structure lighter and stronger than traditional construction system of making structure frame with MS Angles and Flats.
Flexibility: In terms of Size, Mountings, Accessibility and Finish; the cubicles are made to order and we do not push standard products.
IntegrationWe offer panels integrated with instruments, elements and wiring, providing complete one stop solution for panel requirement.

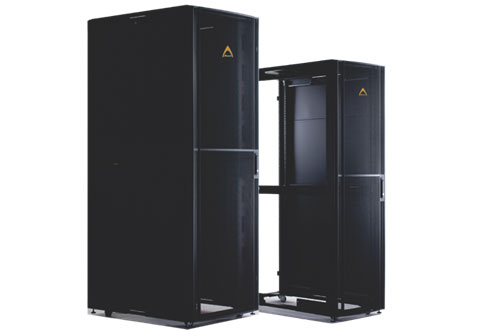

SERVER CABINET
Vendor neutral and highly versatile 19” Rack provides quality solutions for a wide variety of IT and Data Centre Application.
Features
- 1200 Kg. Static load rated
- Overall height on casters just under 2.00 meters
- Contoured high density perforated door provides over 1,000 square inches that open area exceeding major IT equipment air flow requirement.
- Light weight and strong
- Net weight (including casters) 98 kg.
- Split level side panels provide convenient access to installed equipment
- Depth adjustable 19” vertical mounting rails in 5mm increments
- “U” numbers printed on 19” rails
- Knock down design for efficient shipping, 128 sets per 40’container
- Quick assembly time, approximately 25 minutes
Quick release, field reversible single piece or split doors
MOTOR CONTROL CENTER
Our MCC are made in fully compartmentalized modular design cabinet system designed for powering and controlling motors.
Our MCC are two types
- Fixed type MCC
- Drawout MCC Provision of single front and double front
HT PANEL
HT Panels/Kiosks serve as essential components for providing protection and metering for HT feeders, playing a crucial role in electricity distribution.
Advantages:
- All-in-one unit featuring switching, protection, and metering.
- Compact size, saving valuable space.
- Versatile design suitable for feeding both single-phase and three-phase loads with safety protection.
- Option available for Kiosks/Panels with Auto Reclosing Facility, if needed.

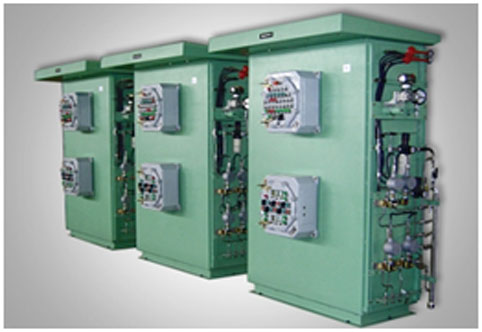

PURGE PANEL
Construction:Alcosy Application:Oil & Gas and Chemical Industry.
Features:
- Robust Construction
- Purging panels are designed & developed for safe use of electrical products in high explosive areas.
- Purging is done as per NFPA – 496
- Purging Enclosure, Explosion Proof Enclosure & Normal Enclosures
Customised design:
Our Compact Substation can be designed and customised to different sizes and configurations to fulfill the customer’s requirements.

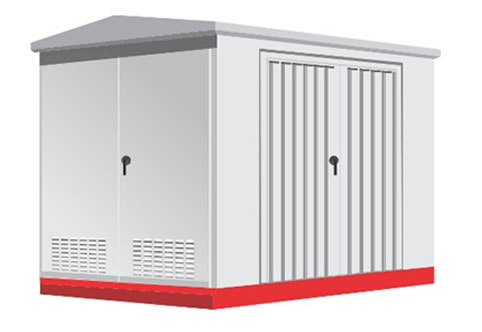

COMPACT SUB STATION
- Installation where space is premium like complexes, Airports, Malls, Industries etc.
- Designed to withstand surrounding temperature, humidity & condensation, rain and solar radiation.
- Designed keeping in mind the dielectric & thermal isolation.
- Indigenously designed and tested for fast and easy installations
- High life expectancy under normal operating conditions.
- Maintenance free.

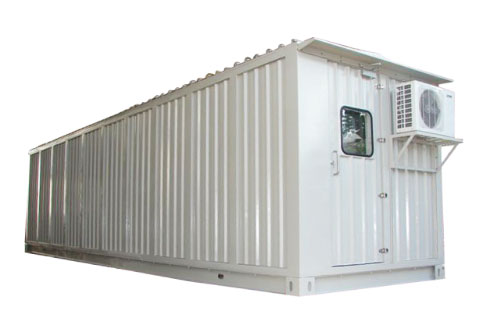

SHELTER
Application:Oil & Gas and Chemical plant
Protection:Weatherproof, Corrosion Protection against Acid & Caustics up to IP-65
Advantages:
• Used as analyzer and sample processing unit, E-rooms
• Fully Insulated
• No Condensation
• Vary low heat gain from direct sunlight, fully dust and moisture free.
