Industrial Mixers & Agitators
SALTECH specialises in state-of-the-art modern technology for the design, manufacture, and supply of a comprehensive range of mixing equipment, including agitators, mixers, blenders, dispersers, and stirrers, for all complex duty and critical mixing requirements.
Our expertise spans from lab-scale pilots to large-scale ‘mass transfer and heat transfer’ solutions, encompassing:

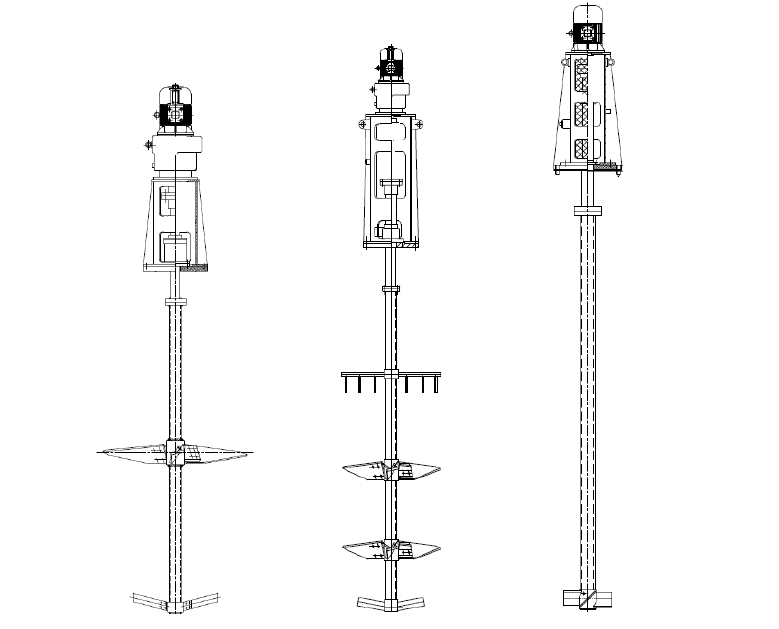

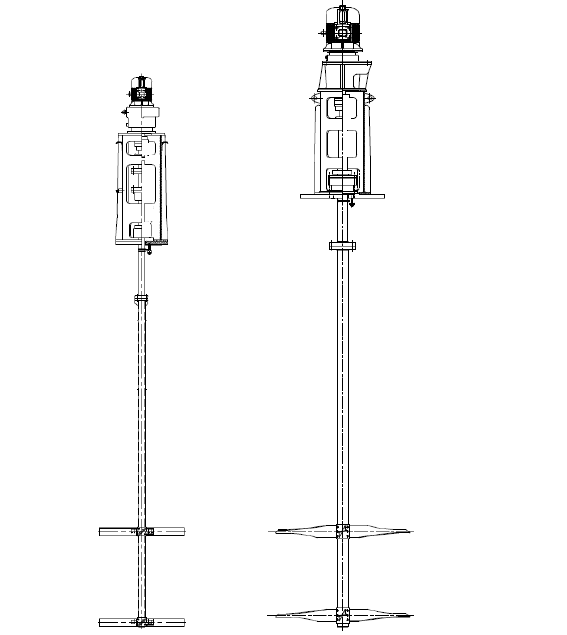

• Top Entry Agitators / Mixers
• Side / Side Inclined Entry Agitators / Mixers
• Fixed Side / Swivel Side Entry Agitators / Mixers
• Bottom Entry Agitators / Mixers
• Inline High Shear Dispersers
• Dual Shaft Mixing Systems (Co-axial / Dual Motion counter-rotating)
• Triple Shaft Mixing Systems
• Blenders
• Stirrers
Shaft Sealing:
- Dust Seal
- Gland Packed Stuffing Box
- Single, Double, or Triple Mechanical Seal
- With API 52/53/54 seal flush plans
Mounting:
- Base Plate / Lantern Stool / Pad / Flange mounted
Shaft:
- Solid / Hollow for improved rigidity and torque transmission
Impellers:
- Axial: Propeller / Hydrofoil / Axial flow turbines / Helix / Screw / Paddle, etc.
- Radial: Flat Blade / Curved Blade Disc turbines / Toothed disc / Stator Rotor, etc.
- Up to 5000 to 7000 mm Impeller diameters
MOC:
- CS / SS304L / SS316L / SS321 / DUPLEX / SUPER DUPLEX / SS410 / ALLOY 926
- HASTELLOY C22/C276 / INCONEL / TITANIUM GR2 / SS904L
- LINING / COATING OF: RUBBER (soft / hard / chlorobutyl, etc.) / POLYMER (PTFE / PVDF / HALAR / FRP / PFA, etc.)
We offer a range of customised specifications for all types of agitators/mixers to suit various complex or critical agitation/mixing requirements, such as:
Drives:
- Motor + gearbox
- Motor + toothed belt
- Direct motor-driven high-speed
- Motors suitable for Ex ‘e’ / Ex ‘n’ / Ex ‘d’ / ATEX / IIC / IP55 / IP65 / CE
Gearboxes:
- Inline Helical
- Worm
- Planetary
- Bevel Helical
- Parallel shaft
Shaft Extensions:
- Cantilevered up to 15,000 mm
- Supported (bottom or intermediate) up to 35,000 mm
Power Range:
- 1 HP TO 1200 HP (0.75 KW TO 895 KW)
Drive Modes:
- CONSTANT POWER / CONSTANT TORQUE
Operating Conditions:
- Temperature: -10 to 320 Deg C
- Pressure: 100 bar(g) and full vacuum
- Solid loading: Up to 75% w/w
- Viscosities: Up to 320,000 cP
- Speed Range: 0 to 3000 RPMs
- Other features include close clearance impeller designs, wall scraping up to 95%, liquid to free-flowing powder capabilities, CIP/sanitary designs, high-pressure gas-liquid dispersion, polymerization/full solvent extraction, narrow PSD crystallization, etc.
Benefits of SALTECH Mixing Solutions:
- Reduced Batch Times
- Higher Throughputs
- Enhanced Yield
- Consistent Quality
- Increased Purity
- Green Engineered Mixing & Agitation Solutions
