Pressure measurement
SH Capacitance Pressure transmitters
SH Series Digital Intelligent Pressure/Differential Pressure Transmitter is a multipurpose digitalized intelligent instrument, including capacitance pressure/differential pressure transmitter. It is made on the basis of the mature and dependable sensing technology, combining the advanced single-chip computer technology and sensor digital exchange technology.
• Type available: Gauge pressure, Absolute pressure, Differential pressure transmitters, diaphragm sealed type
• Measuring range : 0~0.06 kPa to 0~40Mpa
• No mechanical and movable parts, little maintenance work;
• Positive shift amount to 500%; negative shift 600%;
• Two-wire system 4~20mA DC; Smart HART protocol
• Diaphragm materials of wetted parts option (316L, TAN, HAS-C, MONEL, etc.)
• Explosion proof : explosion isolation d II BT4,intrinsically safe ia II CT6
Pressure Gauge
Pressure gauges are devices used for measuring the pressure of a gas or liquid.
• Common pressure gauge
• Stainless pressure gauge
• Liquid filled pressure gauge
• Freon pressure gauge
• Electric contact pressure gauge

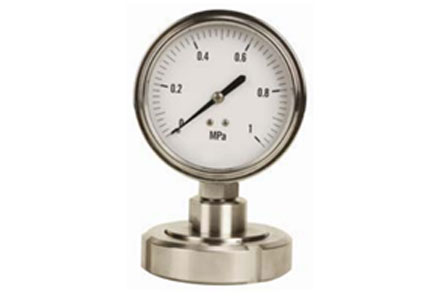

• Diaphragm pressure gauge
• Membrane pressure gauge
• Bellows pressure gauge
SH316 & SH 308 Diffusive Silicone Pressure Transmitter
SH316 & SH 308 Series pressure transmitters choose import diffusive silicon type and ceramics type pressure sensor with high quality as sensitive components, and employ application-specific integrated module, through fine temperature shift, zero and non-linearity compensation, to realize accurate measurement and transmission of medium pressure change of liquid, gas and vapor, etc.
• Power : 24VDC output 4-20mA two-wire
• Ratio of Span: above 3:1
• Span Range : -100kPa~0~60MPa
• Intrinsically safe type ia II CT5
• Overpressure limit : double of upper-limit pressure
• Temperature Range : process : -20 ~ 60C
• Accuracy: +/-0.5%,+/-0.25%
