Submersible Pumps
Explore SALTECH's Submersible Pumps, Open well Submersible Pumpsets, Polder Pump and Dewatering Pumpsets for a variety of applications. Range includes Bore well Submersible Pumpsets from 0.5 HP to 200 HP in various Bore sizes (V4, V5 V6, V7, V8, V10, V12, V14), Horizontal / Vertical Open Well Submersible Pumpsets up to 45 HP, Polder pumpsets up to 200 HP.

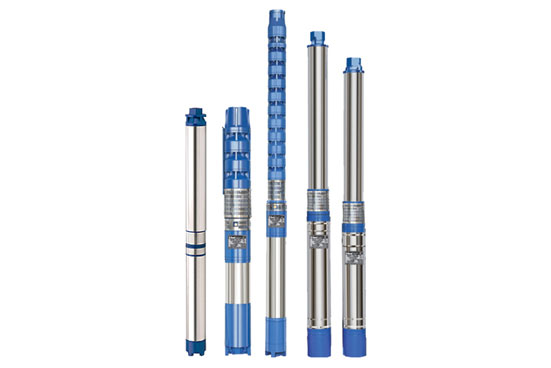

Borewell Submersible Pumpset
Applications: Agriculture, Public Services, Industrial, Irrigation
| Borewell Dia. mm | Model | Head in Mtr. | Capacity LPM | Stage | HP | Supply Voltage | RPM |
|---|---|---|---|---|---|---|---|
| 80 mm | UG 3 | Upto 100 m | Upto 200 lpm | Upto 30 | 1.25hp | 230 V S.P. | 2850 |
| 100 mm | UG 4 | Upto 200 m Upto 240 m |
Upto 350 lpm Upto 350 lpm |
Upto 35 Upto 40 |
3hp 5hp |
230 V S.P. 415 V T.P. |
2850 2850 |
| 125 mm | UG 5 | Upto 90 m | Upto 750 lpm | Upto 10 | 10hp | 41 V T.P. | 2850 |
| 150 mm | UG 6 | Upto 330 m | Upto 1200 lpm | Upto 40 | 30hp | 41 V T.P. | 2850 |
| 175 mm | UG 7 | Upto 275 m | Upto 2000 lpm | Upto 25 | 30hp | 41 V T.P. | 2850 |
| 200 mm | UG 8 | Upto 275 m | Upto 2200 lpm | Upto 15 | 75hp | 41 V T.P. | 2850 |
| 250 mm | UG 10 | Upto 240 m | Upto 3800 lpm | Upto 12 | 150hp | 41 V T.P. | 2850 |
| 300 mm | UG 12 | Upto 210 m | Upto 5500 m | Upto 7 | 200hp | 41 V T.P. | 2850 |
| 350 mm | UG 14 | Upto 135 m | Upto 8500 m | Upto 3 | 200hp | 41 V T.P. | 2850 |
Openwell Submersible Pumpset (Horizontal)
| Model | Head in mm | Capacity LPM | Stage | HP | RPM | Bearing Type | Seals | Solid Size |
|---|---|---|---|---|---|---|---|---|
| UGP | 60mm | 5000 | 2 | 75 | 2900 | Bush Bearing | Mech. Seal | 25mm |
Applications: Agriculture, Openwell application for fluctuating water pump industries, Resewir, Garden, Hospitals, Fountain, Landscaping
Openwell Submersible Pumpset (Vertical)
| Model | Head in mm | Capacity LPM | HP Range | Supply Voltage | RPM |
|---|---|---|---|---|---|
| UG OS | 30mm | 800 | 20hp | 4 | 2900 |
Applications: Agriculture, Openwell application for fluctuating water pump industries, Resewir, Garden, Hospitals, Fountain, Landscaping
| Model | Head in mm | Capacity LPM | Stage | HP | RPM | Bearing Type | Seals | Solid Size |
|---|---|---|---|---|---|---|---|---|
| UGP | 60mm | 5000 | 2 | 75 | 2900 | Bush Bearing | Mech. Seal | 25mm |
Applications:Lift Irrigation, Mines & Collieries application, Dam Sites, Canal Sites
Polder Submersible Pumpset
(Water Cooled & Water Lubricated)
Dewatering Submersible Pumps (Oil Lubricated)
| Model | Head in mm | Capacity LPM | Stage | HP | RPM | Bearing Type | Seals | Solid Size |
|---|---|---|---|---|---|---|---|---|
| UGD | 60mm | 5000 | 2 | 75 | 2900 | Ball Bearing | Mech. Seal | 25mm |
Applications:Raw Water Dewatering, Mines & Collieries, Power Station, Steel Plants
Zero Suction Multistage Pumpset
Range: 3HP/2.2KW to 25HP/8.5KW. These zero suction vertical pumps can lift water at 6″ water level whereas other Pumpsets work up 5′ to 6′ water level.
| Model | Head in mm | Capacity LPM | Stage | HP | RPM | Bearing Type | Seals | Solid Size |
|---|---|---|---|---|---|---|---|---|
| UGZS | 160mm | 1200 | 10 | 50 | 2900 | Bush Bearing | Mech. Seal | 25mm |
Applications:Sump, Basement, Mines & Collieries
Sewerage Submersible Pumpset
| Model | Head Range in mtr | Capacity Range in LPM | HP | RPM | Bearing Type | Seals | Solid Size |
|---|---|---|---|---|---|---|---|
| UGSW | 2 - 36 | 200 - 1600 | 15 | 29000 | Ball Bearing | Mech. Seal | 25 to 40 mm |
Applications:Drainage & Sewerage Pumping System, Efficient with sludge & slurries, Transfer of suspended solids, Dredging application
Self Priming Centrifugal Monoblock Pumpset
| Model | Head in mm | Capacity LPM | Stage | HP | Supply Voltage | Motor Type |
|---|---|---|---|---|---|---|
| UGSP | 45mm | 300 | Single | 1.1 | 230V S.P. | "E" Class TEFC |
Applications:Domestic, Industries, Multistoried Buildings
