SALTECH offers a diverse range of Electric Motors, from 5 watts to 5.4 Mega Watts. Our lineup includes Three Phase Motors, Slip Ring Motors, Crane Duty Motors, Cooling Tower Motors, Traction Motors, Exhaust Fans, Axial Flow Fans, Centrifugal Fans, Flame Proof Motors, FHP motors for AC&R, GP Motors, Dishwasher Motors, Cooler Kits, and accessories.
Low Voltage Motors

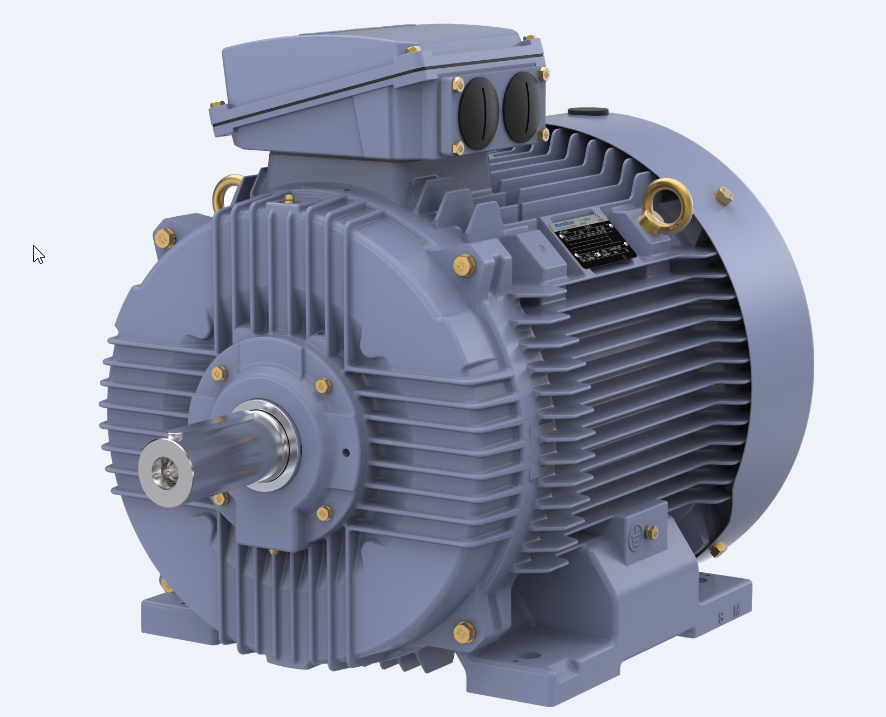

TerraMAX SCA - IE2 Motors
Frame Sizes: IEC®* 80 – IEC 355
Power Rating: 0.37 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
TerraMAX TCA - IE3 Motors
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.37 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
TerraMAX QCA - IE4 Motors
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.37 kW to 355 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 6
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B

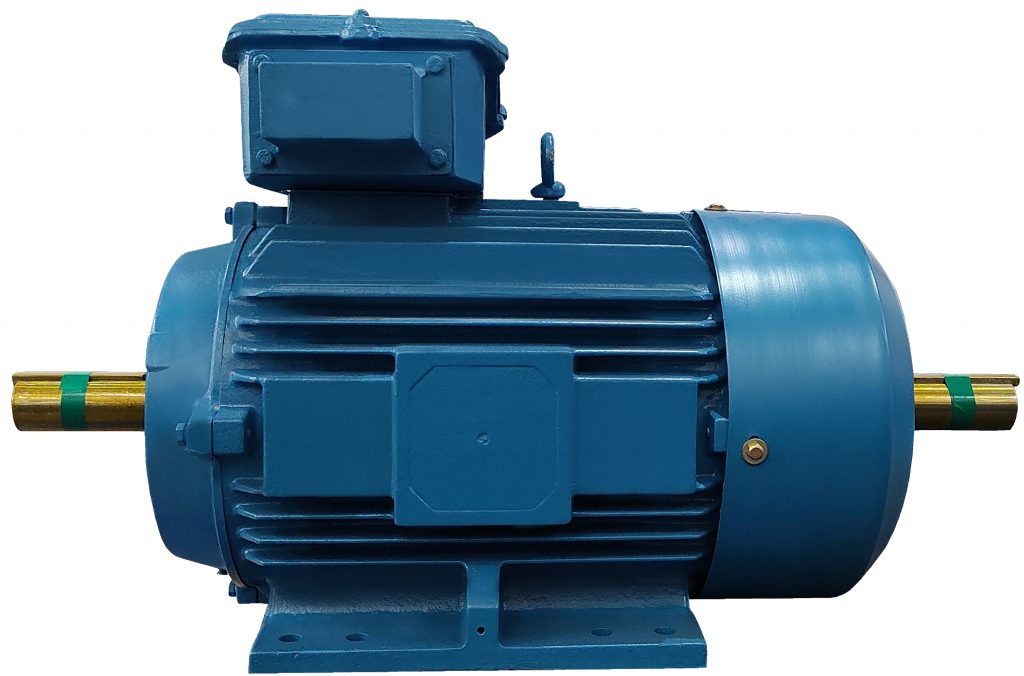

Challenger IE2 Motors
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.37 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class.
Special features available on demand: Brake, Force cooling, encoder mounting, Multi-speed, Type Ex ec, Higher pole 10/12, Intermittent duty.

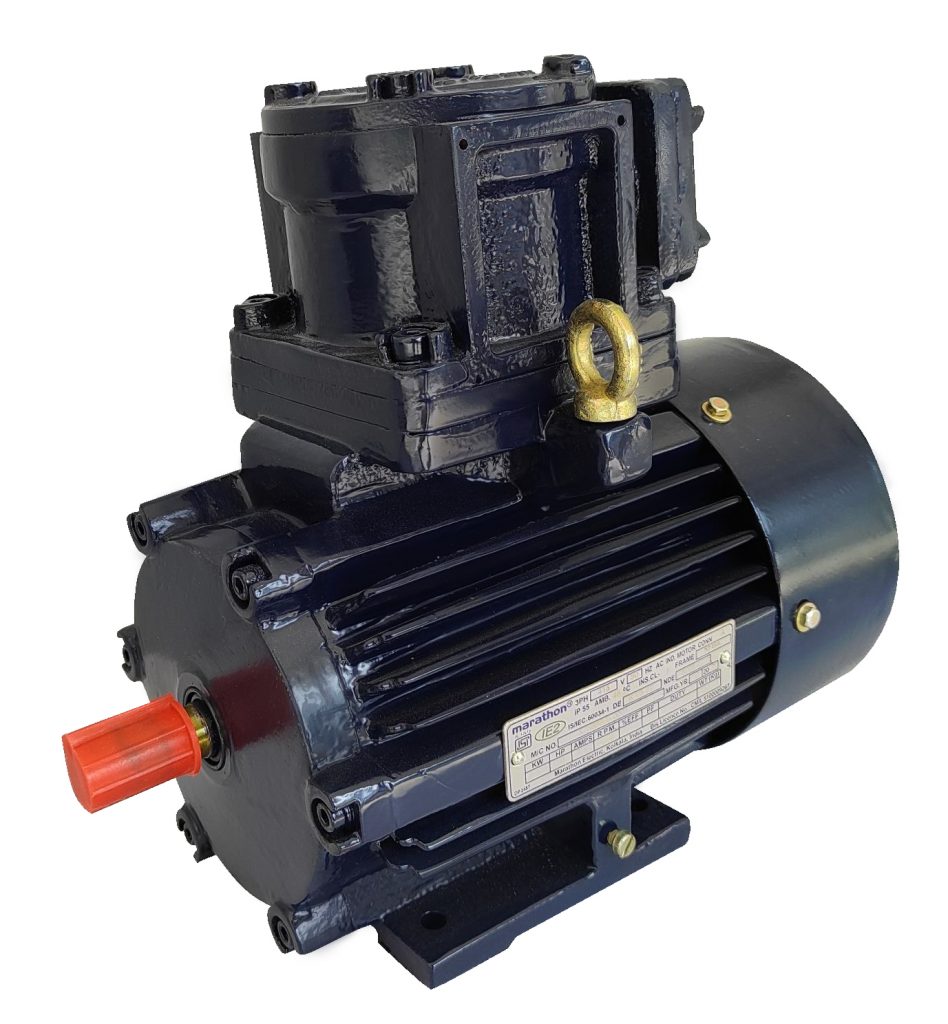

Flame Proof Motors IE1 / IE2
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.37 kW to 315 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B
Gas Group – I , IIA & IIB for entire and IIC for frame 80 to 160

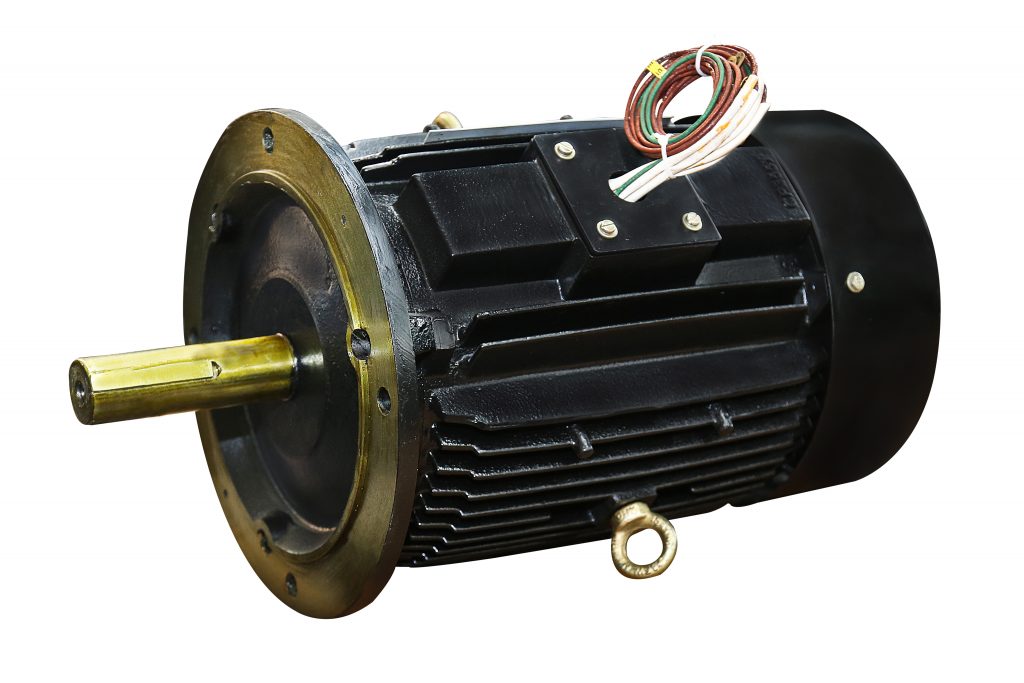

Smoke Spill Motors IE2 / IE3
Frame Sizes: IEC 80 – IEC 280
Power Rating: 0.37 kW to 90 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class H
Thermal capacity under abnormal condition: 400 / 300 / 250 degree centigrade for 2 hours
PTSC - I SPDP Squirrel Cage Motors
Frame Sizes: IEC 160 – IEC 355
Power Rating: 11 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP21, IP23 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B

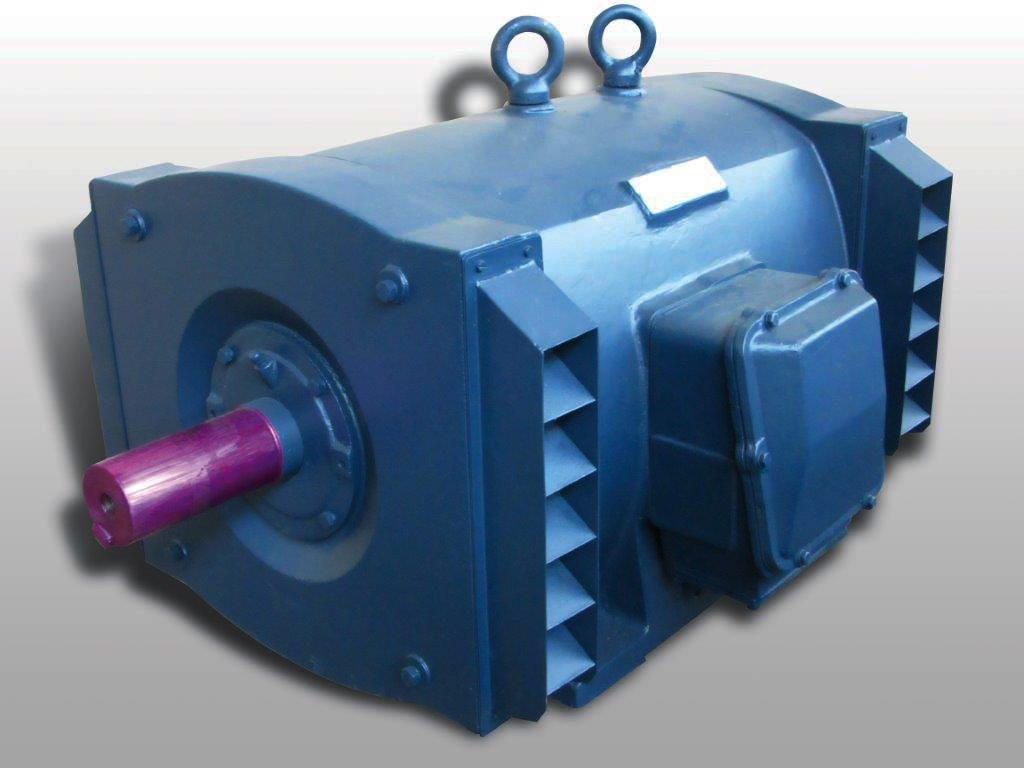

PTSC - I (Fire Fighting) SPDP Squirrel Cage Motors
Frame Sizes: IEC 180 – IEC 250
Power Rating: 30 kW to 110 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2
Protection: IP21, IP23 (IS 4691)
Insulation Class: Class F with temperature rise limited to class B

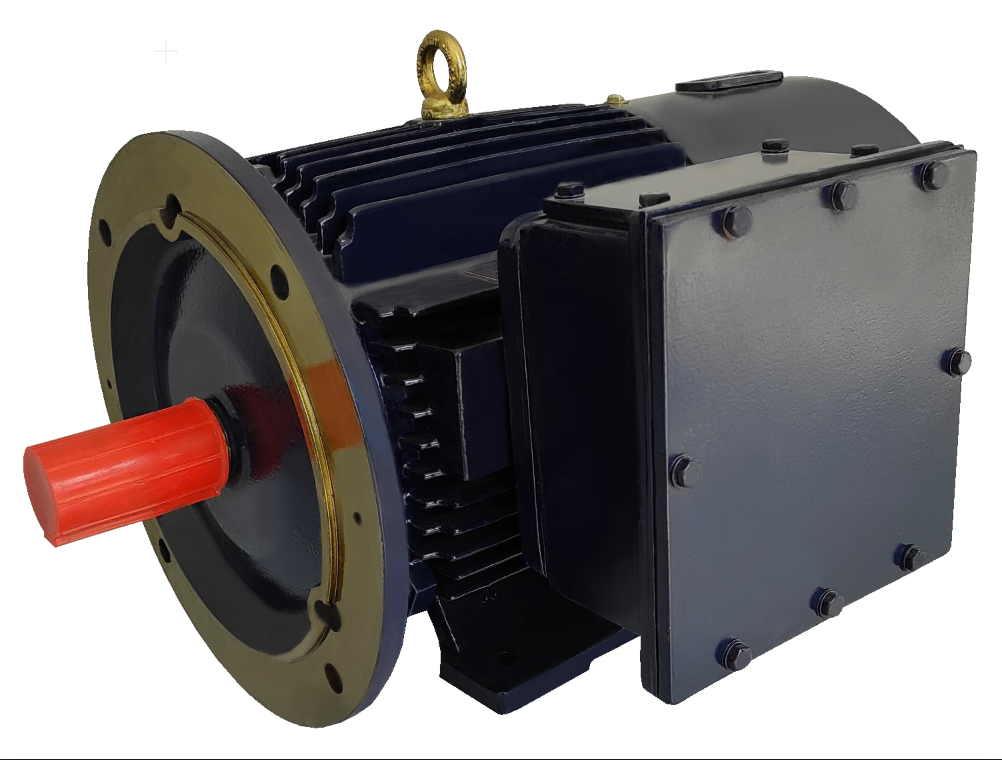

KD Crane Duty Motors (Lower Frame)
Frame Sizes: IEC 80 – IEC 250
Power Rating: 0.75 kW to 55 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 4 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F
Meets efficiency requirement as per IS:12615-2018
KS Crane Duty Slipring Motors
Frame Sizes: IEC 112 – IEC 560
Power Rating: 2 kW to 450 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 6 to 10
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limit to Class B

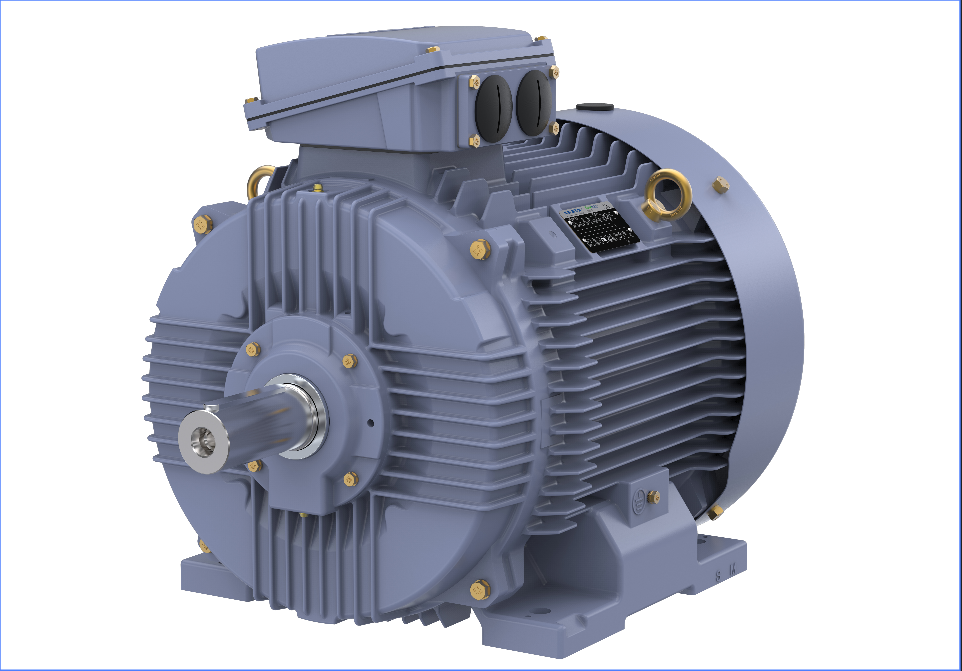

TerraMAX SCV - Crane Duty Motor
Frame Sizes: IEC 80 – IEC 355
Power Rating: 0.75 kW to 315 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 4 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F
Meets efficiency requirement as per IS:12615-2018
Medium Voltage Motors

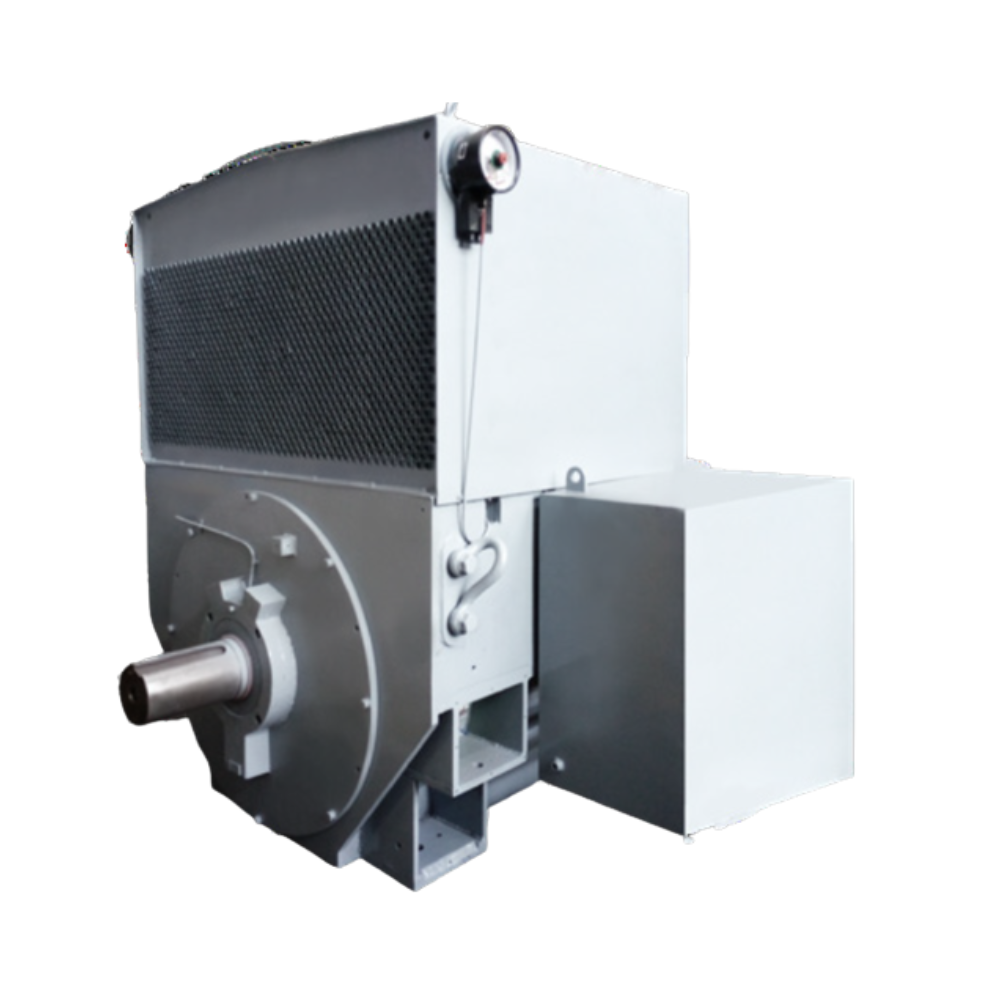

MV Motors - CACA
Frame: IEC®* 315 to IEC 710
Power Rating: upto 5 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 2 to 14

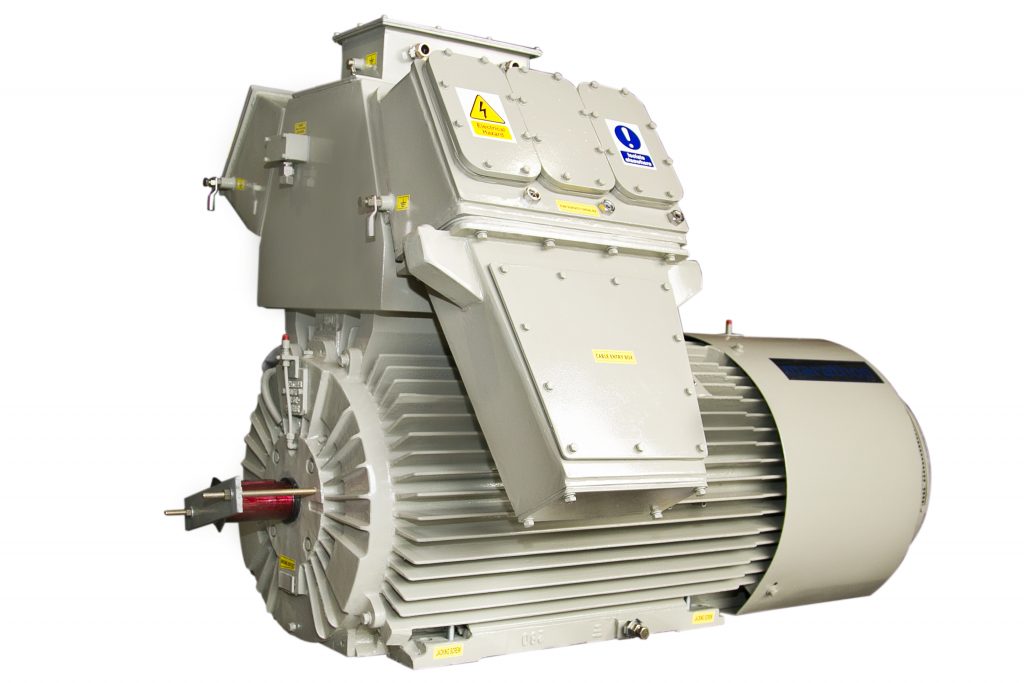

MV Motors - TEFC
Frame: IEC 280 to IEC 560
Power Rating: upto 1.5 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
MV Motors - CACW
Frame: IEC 315 to IEC 710
Power Rating: upto 5 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
MV Motors - Flame Proof (Ex d)
Frame: IEC 280 to IEC 450
Power Rating: upto 750 kW
Voltage: 3.3KV / 6.6KV
Frequency: 50Hz +- 5%
Pole: 2 to 8

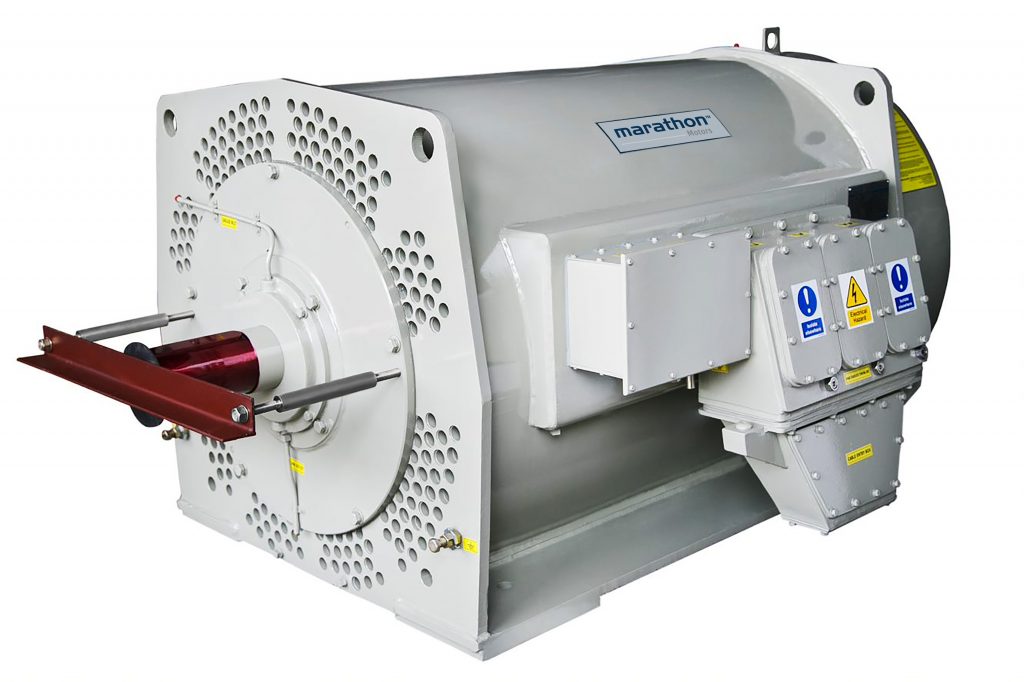

MV Motors - TETV
Frame: IEC 400 TO IEC 1000
Power Rating: upto 4 MW
Voltage: 3.3KV / 6.6KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
MV Motors - CACA SLIP RING
Frame: IEC 315 to IEC 710
Power Rating: upto 3 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 4 to 8
MV Motors - SPDP
Frame: IEC 315 to IEC 710
Power Rating: upto 5 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 2 to 14
MV Motors - CACA SLIP RING
Frame: IEC 315 to IEC 710
Power Rating: upto 3 MW
Voltage: 3.3KV / 6.6KV / 11KV
Frequency: 50Hz +- 5%
Pole: 4 to 8
Fans

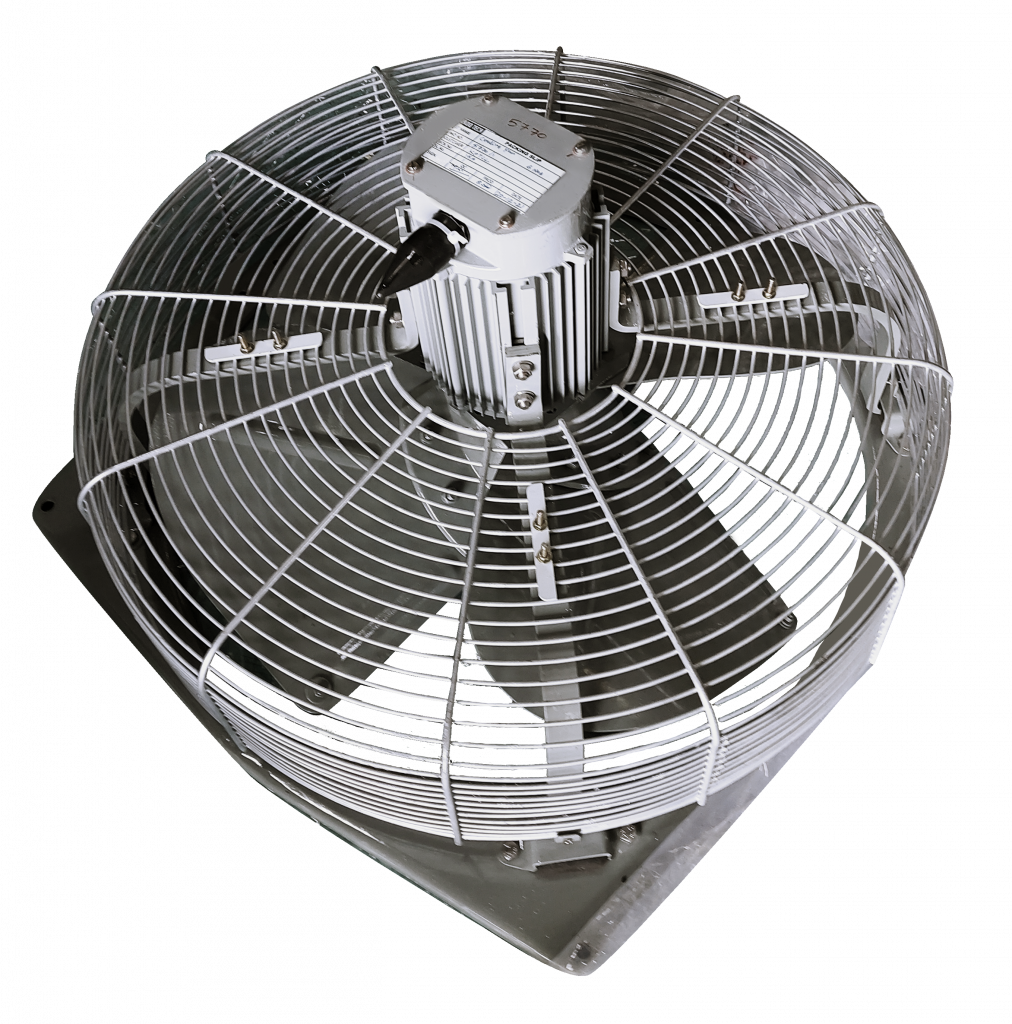

Propeller Fan
Air Flow: 1200 m³/hr to 28000 m³/hr
Sweep Dia: 12” to 36”
Voltage: 415V+-10%
Frequency: 50 Hz±5%
Static Pressure: Free Flow

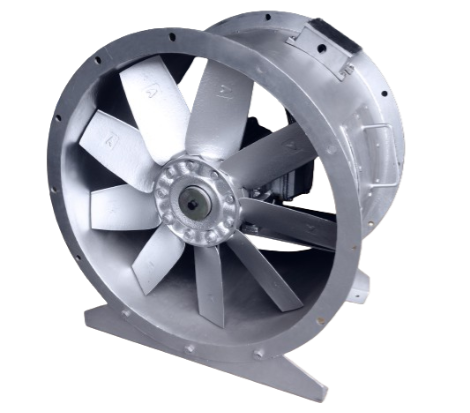

Axial Flow Fan
Air Flow: 1000 m³/hr to 300000 m³/hr
Sweep Dia: 12” to 75”
Voltage:415V+-10%
Frequency: 50 Hz±5%
Static Pressure: Free Flow to 135 mm wg
Centrifugal Fan
Air flow: 1000 m³/hr to 250000 m³/hr
Impeller dia: 250mm to 2000mm
Voltage: 415V+-10%
Frequency: 50 Hz±5%
Static pressure: 7.5 mm wg to 900 mm wg

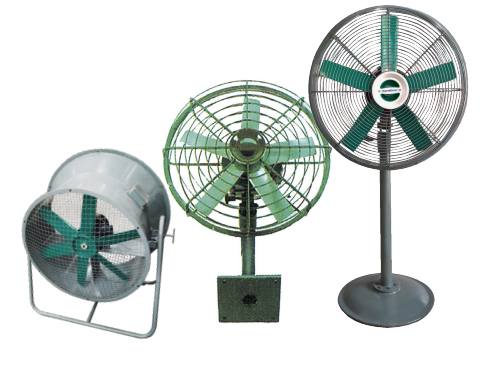

Mancooler Fan
Sweep range: 480 mm to 1200 mm
Air flow: 22000 m3/hr to 74500 m3/hr
Static pressure: Free Air Delivery (F.A.D.)
